853632-YIM-B-0213

6 Johnson Controls Unitary Products

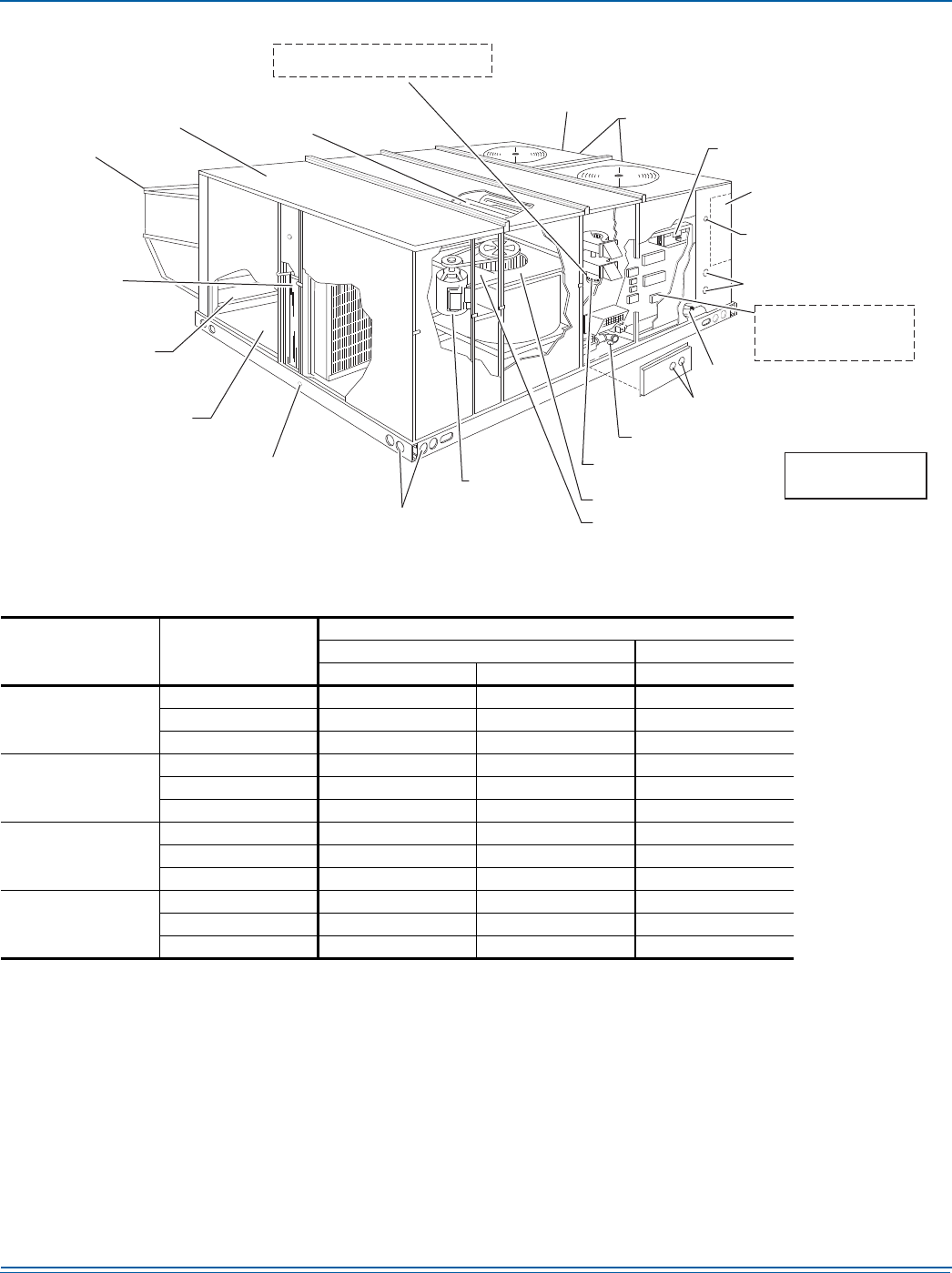

Figure 1: ZF180-300 Component Location

Table 1: ZF180-300 Unit Limitations

Size

(Tons)

Unit Voltage

Unit Limitations

Applied Voltage Outdoor DB Temp

Min Max Max (°F)

180

(15)

208/230-3-60 187 252 125

460-3-60 432 504 125

575-3-60 540 630 125

210

(17.5)

208/230-3-60 187 252 125

460-3-60 432 504 125

575-3-60 540 630 125

240

(20)

208/230-3-60 187 252 125

460-3-60 432 504 125

575-3-60 540 630 125

300

(25)

208/230-3-60 187 252 125

460-3-60 432 504 125

575-3-60 540 630 125

ELECTRICAL DISCONNECT

MOUNTING LOCATION

(Field installed)

KNOCKOUT FOR

SIDE CONTROL WIRING ENTRY

KNOCKOUT FOR

SIDE POWER WIRING ENTRY SIDE

TERMINAL BLOCK

(For Single Point Power Supply

with Electric Heat)

ELECTRIC\ELECTRIC UNITS

BOTTOM POWER & CONTROL

WI RI NG ENT RY

KNOCKOUTS FOR SIDE

GAS SUPPLY ENTRY

HOLE FOR BOTTOM

GAS SUPPLY ENTRY

POWER VENTOR MOTOR

WITH POST PURGE CYCLE

BELT-DRIVE

BLOWER MOTOR

FULL PERIMETER 14 GAUGE BASE

RAILS WITH LIFTING HOLES

1" NPTI

CONDENSATE DRAIN

SIDE AND BOTTOM

SUPPLY & RETURN AIR

DUCT OPENINGS(SIDE X SIDE)

OUTDOOR AIR OPENING

FOR SLIDE-IN/PLUG-IN

INTERNAL ECONOMIZER(OPTION)

2" DISPOSABLE

FILTERS

ECONOMIZER HOOD

LONG LASTING

POWDER PAINT FINISH

20 GAUGE ALUMINIZED STEEL

TUBULAR HEAT EXCHANGERS

COPPER TUBE/ALUMINUM FIN

CONDENSER COILS

LOW VOLTAGE RELAY BOARD

AND TERMINAL STRIP

GAS/ELECTRIC

UNIT SHOWN

ELECTRIC HEATER LOCATION

(OPTIONAL ELECTRIC/ELECTRIC UNITS)

HIGH EFFICIENCY COMPRESSORS

WITH CRANKCASE HEATERS

LOCATION OF VFD (Optional)

LOCATION OF VFD BYPASS (Optional)
